4x4 TROPHY TRUCK (1:11 Scale)
RC 1:11 Scale Trophy Truck
$8.50

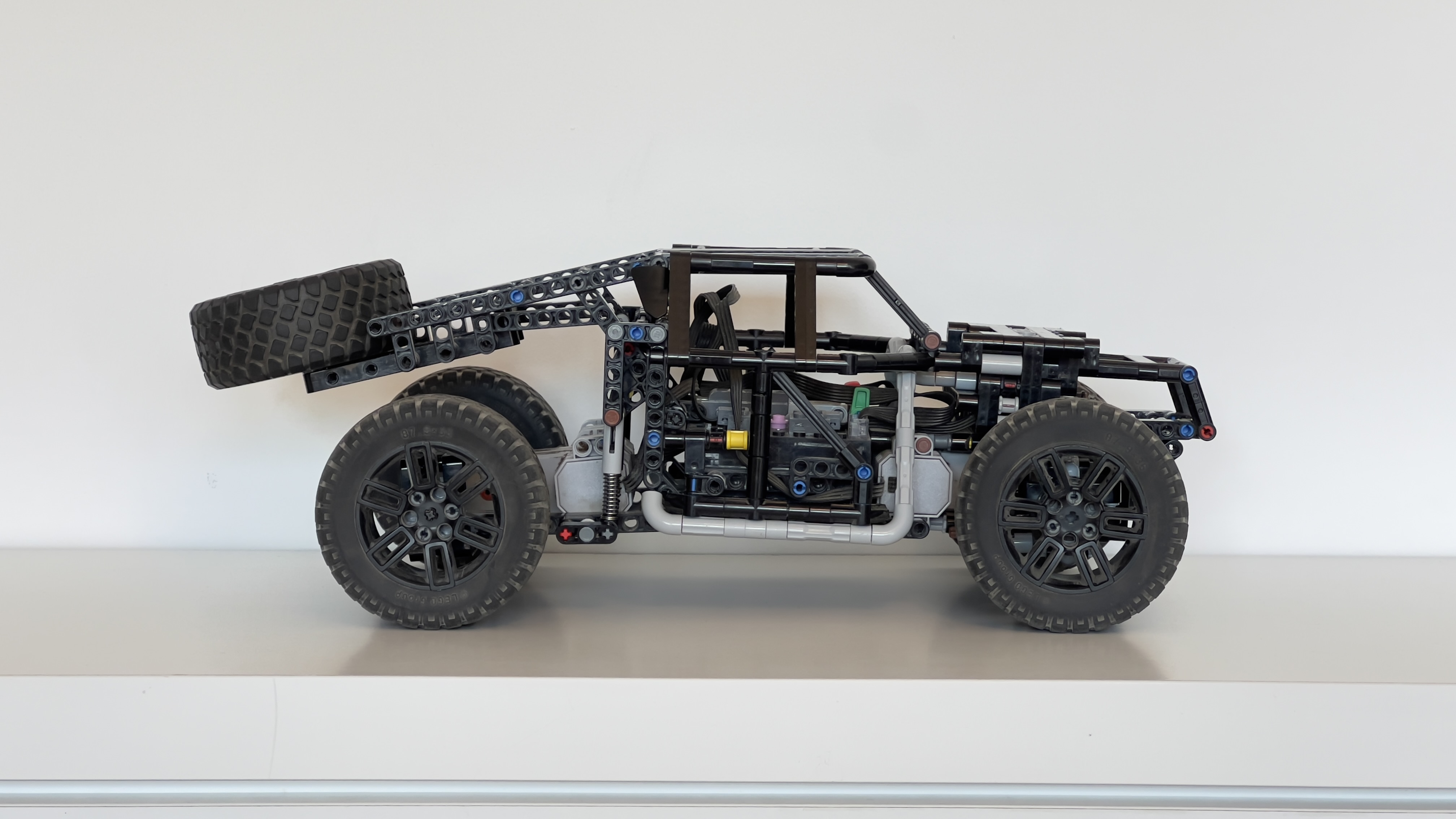

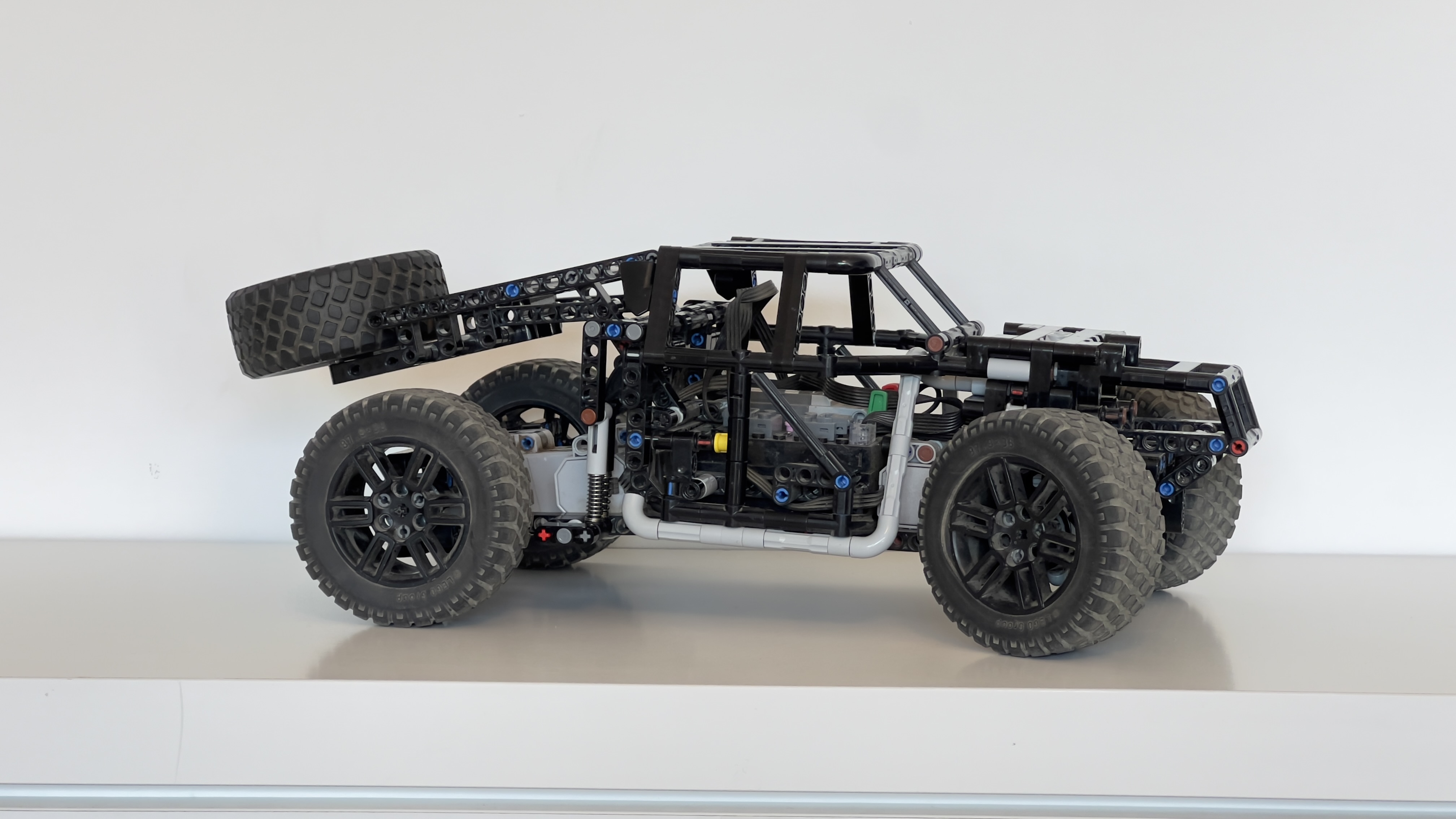

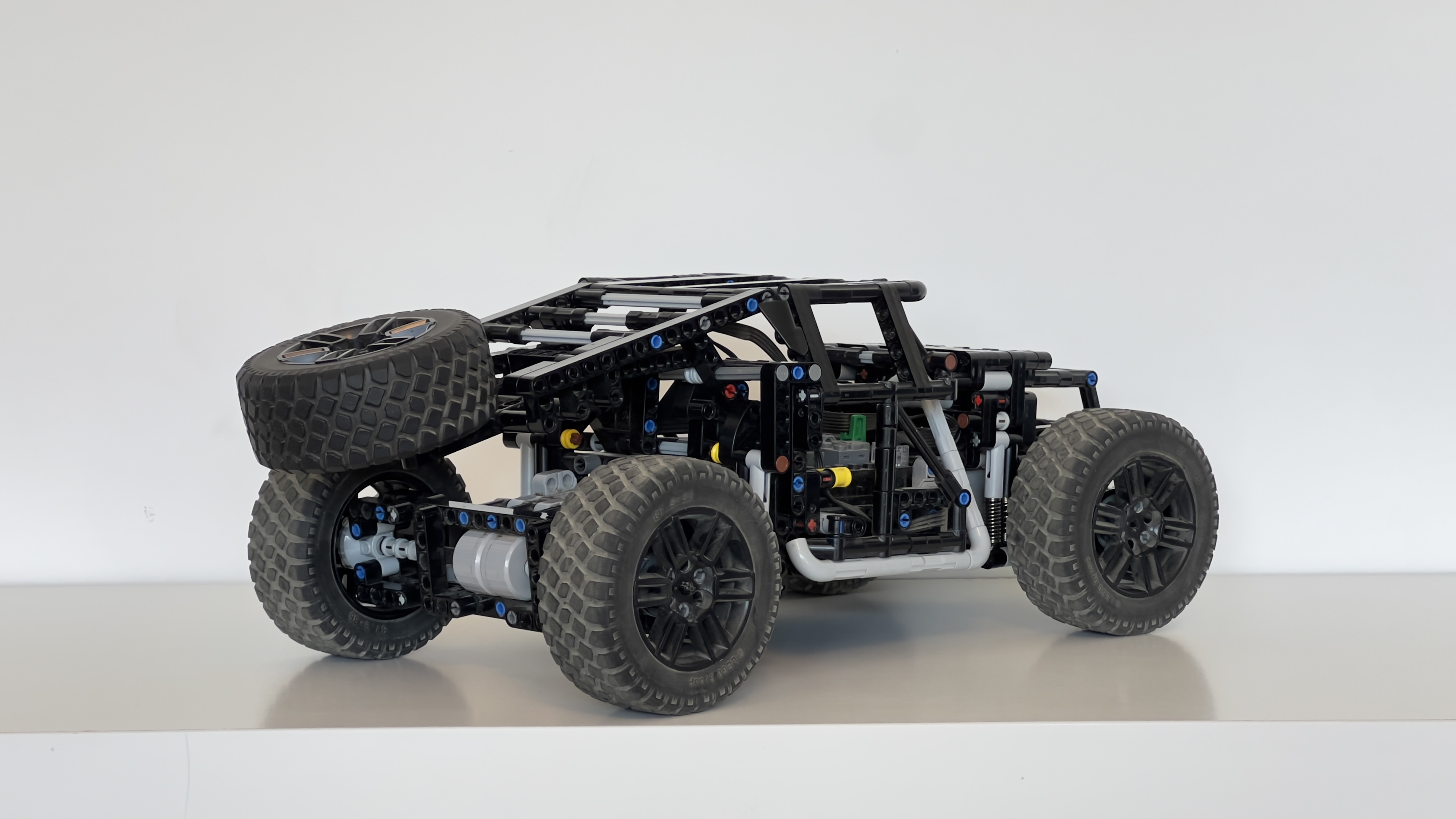

Here is my first 4x4 trophy truck I created so far, please note that only BuWizz motors will fit
Also available on Rebrickable: https://reb.li/m/217738
DRIVETRAIN:
There are 4 motors present in this MOC, as for the front wheels they use 2 motors with an open differential. Rear axle consists of 2 other motors, this time locked, to provide instant power to the rear wheels and better drifting(videos are at the bottom of the page) abilities. They are all connected to the outermost output of the motor so it has a good balance between speed and power. It reached a quite good 23 km/h(about 14mph) in perfect conditions:
STEERING:
As always the steering is operated by a control+ L motor to provide a smooth and responsive control, there is a bit of slack in the system but not much compared to some of my other builds. It has a good angle to be able to make controlled drifts and stunts across dirt. By the way, this car is especially made for loose ground, in normal roads the car tends to roll over quite a lot since it lacks anti-roll bars.

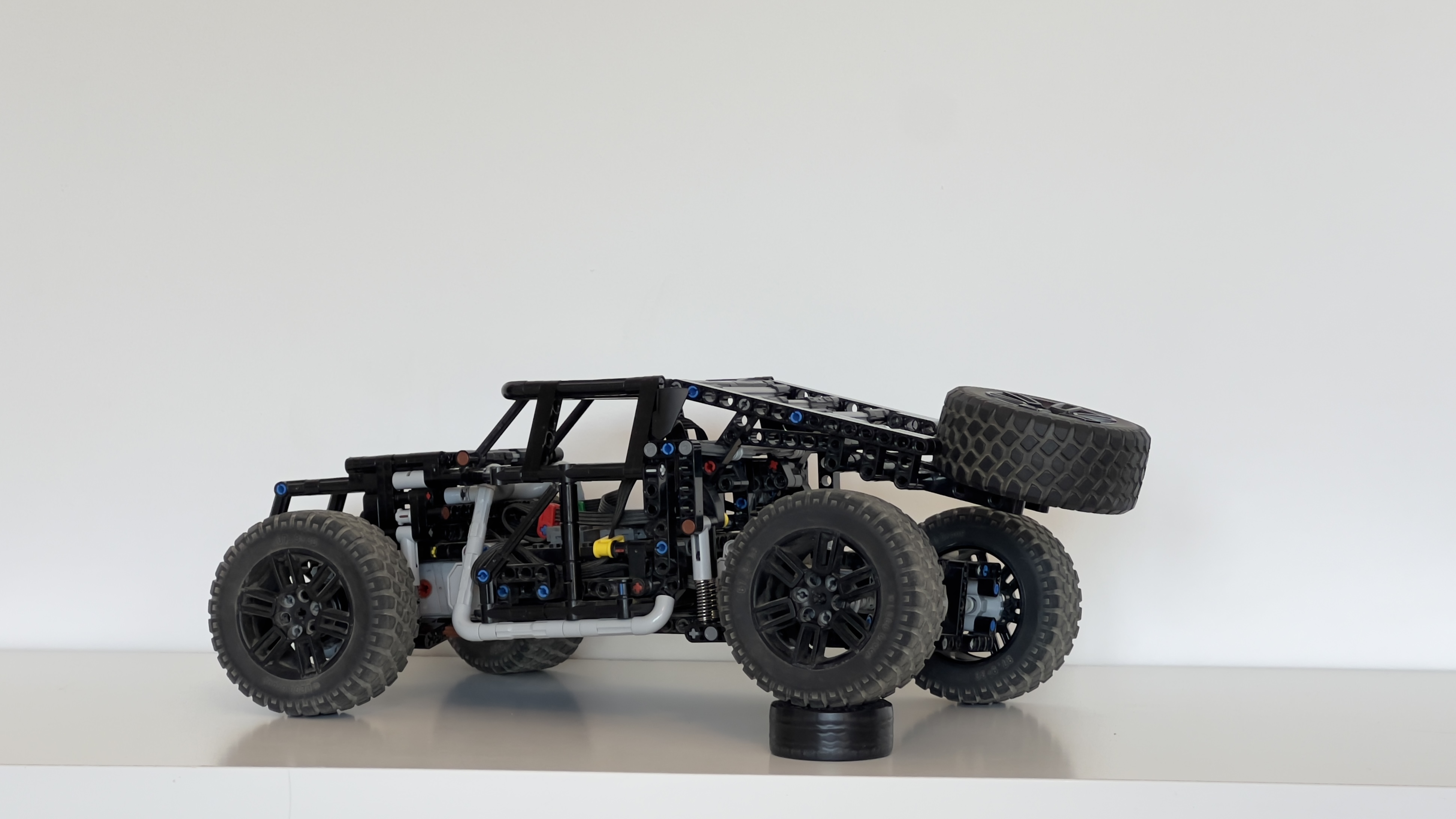

SUSPENSION:
It's arguably one of the best suspension systems I made so far.Please note that the video shows suspension performance with 3rd part oil-filled shocks whilst instructions show normal 6.5 L shock absorbers,the tutorial is out! (get the shock absorbers here <--)
IMPORTANT NOTE FOR THE BUILDERS!:
If you want to get the oil-filled shock absorbers you will need 4 of those (buy them from here) and a drill and a 5mm drill bit, then you just drill the holes with the 5mm drill bit to make them "lego-compatible".
The video is at the end of the photos
FINAL NOTES:
When you purchase this MOC you will get high quality PDF file consisting of 281 pages and 354 steps.
